Black and White List

Zero Trust Security

Zero trust means there is no implicit trust, either inside or outside the network perimeter. SolarMesh is one of the important implementation carriers of cloud-native zero-trust system. Integrating authentication and authorization from application code into SolarMesh makes it out-of-the-box, dynamically configurable, and updating policies is easier and takes effect immediately. This article introduces the use of SolarMesh to implement black and white list access for services.

Preconditions:

  • Deploy the bookinfo project and inject sidecar into each instance.
  • Deploy sleep service to facilitate testing
$ kubectl get po -n test -owide
NAME                             READY   STATUS    RESTARTS   AGE   IP           NODE       NOMINATED NODE   READINESS GATES
details-v1-65b994c875-kgbp2      2/2     Running   0          9d    10.36.0.9    49-node1   <none>           <none>
productpage-v1-8bf7687-nxb5t     2/2     Running   0          9d    10.36.0.14   49-node1   <none>           <none>
ratings-v1-bcdd8c995-vfqj9       2/2     Running   0          9d    10.36.0.16   49-node1   <none>           <none>
reviews-v1-5f4866bd47-sxr6b      2/2     Running   0          9d    10.36.0.17   49-node1   <none>           <none>
reviews-v2-7b66cff677-kjl4v      2/2     Running   0          9d    10.44.0.7    46-node2   <none>           <none>
reviews-v3-6dddcfbb87-94zkd      2/2     Running   0          9d    10.44.0.9    46-node2   <none>           <none>
sleep-5c88f5b48d-tlmb5           2/2     Running   0          9d    10.36.0.18   49-node1   <none>           <none>

Let us first remember that the IP of sleep-5c88f5b48d-tlmb5 is 10.36.0.18. Later, we will set that only this IP cannot access our productpage-v1-8bf7687-nxb5t, simulating a blacklist scenario.

Try it

We first visit productpage-v1-8bf7687-nxb5t in sleep-5c88f5b48d-tlmb5:

$ kubectl exec -it sleep-5c88f5b48d-tlmb5 -n test sh
kubectl exec [POD] [COMMAND] is DEPRECATED and will be removed in a future version. Use kubectl exec [POD] -- [COMMAND] instead.
/$ curl -v productpage:9080
* Trying 10.21.152.27:9080...
* Connected to productpage (10.21.152.27) port 9080 (#0)
>GET/HTTP/1.1
> Host: productpage:9080
> User-Agent: curl/8.0.1-DEV
> Accept: */*
>
< HTTP/1.1 200 OK
< content-type: text/html; charset=utf-8
< content-length: 1683
< server: envoy
< date: Fri, 28 Apr 2023 09:33:56 GMT
< x-envoy-upstream-service-time: 149
<
<!DOCTYPE html>
<html>
   <head>
     <title>Simple Bookstore App</title>
<meta charset="utf-8">
<meta http-equiv="X-UA-Compatible" content="IE=edge">
<meta name="viewport" content="width=device-width, initial-scale=1">
...

As you can see above the access is ok.

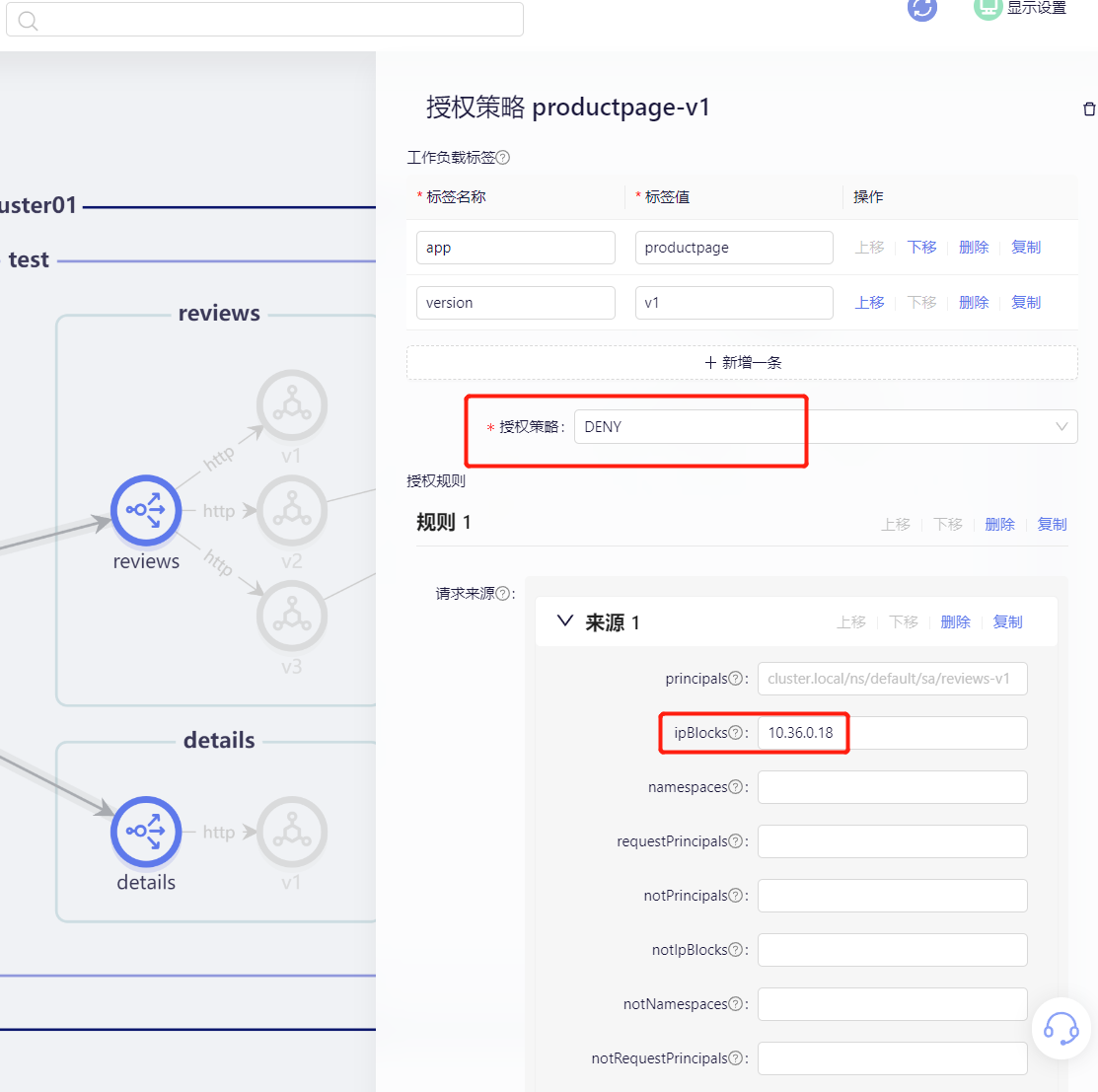

We now configure a blacklist to restrict its access.

Save it and try accessing it again.

$ curl -v productpage:9080
* Trying 10.21.152.27:9080...
* Connected to productpage (10.21.152.27) port 9080 (#0)
>GET/HTTP/1.1
> Host: productpage:9080
> User-Agent: curl/8.0.1-DEV
> Accept: */*
>
< HTTP/1.1 403 Forbidden
< content-length: 19
< content-type: text/plain
< date: Fri, 28 Apr 2023 09:43:56 GMT
< server: envoy
< x-envoy-upstream-service-time: 71
<
* Connection #0 to host productpage left intact

The result shows 403, indicating that our configuration has taken effect.
